Products Medium power four channel DC power supply

Four DC charging power supply

Four DC charging power supply

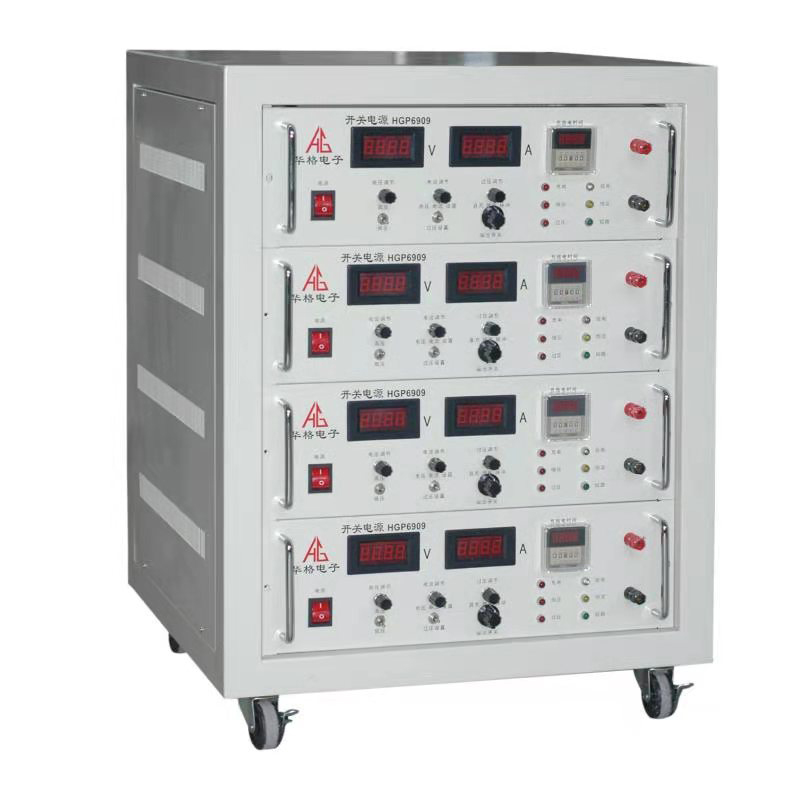

Four way DC power supply 600v2A

The output voltage and current of this series of DC charging power supply can also be set arbitrarily, which has strong flexibility, constant current and constant voltage functions, and has the good characteristics of small output ripple. It is suitable for the withstand voltage life test of various specifications of electrolyte capacitors and bile electrolytic capacitors, as well as capacitor aging. Each group has short-circuit protection function, which well protects instrument operators and aging or experimental capacitors.

The output voltage and current of this series of DC charging power supply can also be set arbitrarily, which has strong flexibility, constant current and constant voltage functions, and has the good characteristics of small output ripple. It is suitable for the withstand voltage life test of various specifications of electrolyte capacitors and bile electrolytic capacitors, as well as capacitor aging. Each group has short-circuit protection function, which well protects instrument operators and aging or experimental capacitors.

Technical indicators

1. Four power outputs, four groups of power supplies are independent;

2. Each circuit has the function of constant current and constant voltage;

3. With internal discharge function;

4. Constant voltage continuously adjustable range: 0.0v ~ ~ rated maximum resolution: minimum 0.1V;

5. Constant current continuous adjustable range: 0ma ~ ~ rated maximum resolution: 1mA;

6. . voltmeter error of the whole machine: less than 1%; Error of complete ammeter: less than 1%;

7. Load effect (current regulation rate): constant voltage ≤ 0.3% + 10mV;

8. Source effect (voltage regulation rate): constant voltage ≤ 0.2% + 10mV;

9. Ripple: ≤ 0.03% output voltage (effective value);

10. . short circuit protection: enter the state after the output positive and negative short circuit time exceeds 10 seconds;

11. Working mode: continuous work.
